Description

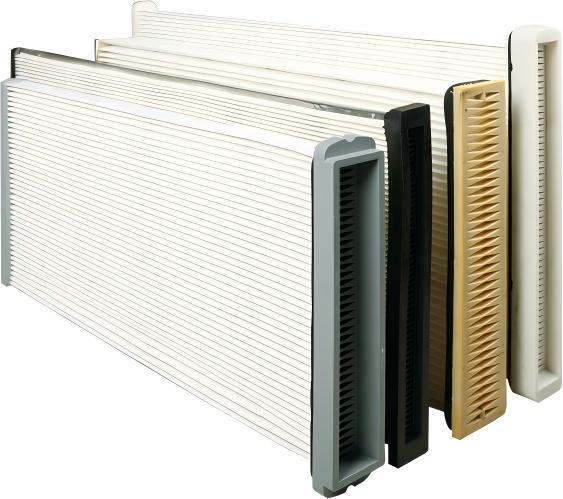

Product Name: Flat Dust Filter Panel (also known as Panel-type Cartridge, Plate Filter, or Flat Pleated Filter)
Overview
Our Flat Dust Filter Panel is a high-efficiency, space-saving replacement for traditional cylindrical filter cartridges and bag filters. Designed with a flat rectangular modular structure, it is the core filtration element for panel-type pulse-jet integrated dust collectors, laser cutting fume extractors, and compact dry dust collection systems.
Unlike bulky round cartridges, this panel design maximizes usable filter area within a given housing volume – delivering up to 30% more effective filtration area in the same footprint. The flat pleat geometry ensures more uniform pulse-jet cleaning, reducing pressure drop spikes and extending media life.
Why Choose This Panel Filter?
· Space-efficient: Modular flat shape allows higher packing density, ideal for space-constrained workshops and retrofit projects.
· Superior cleaning: Even pulse distribution eliminates dead zones, preventing dust bridging and blinding – especially effective for sticky or fine dusts (e.g., laser fume, metal oxides).
· Easy maintenance: Quick-access frame design enables filter replacement without special tools, reducing downtime.
· Versatile media options: Available in polyester, PTFE-laminated, antistatic, and oleophobic treatments to match your specific dust characteristics.
Typical Applications
· Laser / plasma cutting fume extraction
· Welding fume collectors
· Woodworking / composite sanding
· Pharmaceutical and food processing (hygienic designs available)
· Retrofit upgrades for older baghouse or cyclone systems
Why Our Panel Outperforms Cylindrical Cartridges
Feature Cylindrical Cartridge Our Flat Panel
Space utilization Moderate High (rectangular packing)
Cleaning uniformity Good Excellent (even pulse distribution)
Dust release May trap on inner pleats Superior (vertical pleats aid gravity drop)
Replacement cost Higher due to end caps Economical (simple frame construction)
